Profilers

I use two profilers:

cProfile - https://docs.python.org/3/library/profile.html

line-profiler - https://pypi.org/project/line-profiler/

Requirements

python 3.10: module load itm-python/3.10

line-profiler : pip install line-profiler

gprof2dot : pip install gprof2dot

How to run?

Prepare a standard launch
Copy python directory from /gss_efgw_work/work/g2fjc/jintrac/v220922/python to some location on pfs for example: /pfs/work/g2pbloch/python (I use paths with my username, change them to ones with your username)
Change JINTRAC_PYTHON_DIR in rjettov (430 line) to python directory on pfs from step 2
Change run_python_driver (line 49) in /pfs/work/g2pbloch/python (I use paths with my username, change them to ones with your username):
cProfile : mpirun --allow-run-as-root -np $NPROC python -u -m cProfile -o jintrac.prof /pfs/work/g2pbloch/python/jintrac_imas_driver.py mpi
line-profiler : mpirun --allow-run-as-root -np $NPROC python -u -m kernprof -l /pfs/work/g2pbloch/python/jintrac_imas_driver.py mpi
When we use line-profiler we must add wrapper to profiling function. In this case we should add @profile upper jintrac_imas_driver function in jintrac_imas_driver.py :
function wrapper
```
@profile
def jintrac_imas_driver(params, components, mpi='no'):

    """JINTRAC-IMAS generic workflow driver."""
```
Run ./rjettov -S -I -p -x64 test v220922 g2fjc

cProfile analysis

To read data from test.prof we need python script. We can use e.g.

cprofile_script.py

import pstats
stats = pstats.Stats('test.prof')
stats.strip_dirs().sort_stats(pstats.SortKey.TIME).print_stats()

This script print data sorted by tottime column ( In tottime column is total time spent in the given function (and excluding time made in calls to sub-functions)). These are the first few lines of the result:

   Wed Nov 30 09:40:33 2022    test.prof

         19379745 function calls (19376063 primitive calls) in 164.514 seconds

   Ordered by: internal time

   ncalls  tottime  percall  cumtime  percall filename:lineno(function)
        3   81.304   27.101   81.304   27.101 {imas_3_37_0_ual_4_11_0._ual_lowlevel.ual_open_pulse}
  2891220   42.947    0.000   52.709    0.000 {imas_3_37_0_ual_4_11_0._ual_lowlevel.ual_read_data_array}
  2497358   16.127    0.000   16.127    0.000 {imas_3_37_0_ual_4_11_0._ual_lowlevel.ual_read_data_scalar}
  2899948    2.784    0.000    2.784    0.000 {built-in method numpy.zeros}
   815194    2.391    0.000    2.391    0.000 {method 'reduce' of 'numpy.ufunc' objects}
   427578    1.225    0.000    2.589    0.000 fromnumeric.py:38(_wrapit)
   815196    1.015    0.000    7.988    0.000 {built-in method numpy.core._multiarray_umath.implement_array_function}
   387616    0.876    0.000    2.809    0.000 fromnumeric.py:69(_wrapreduction)
   427578    0.848    0.000    0.848    0.000 {method 'reshape' of 'numpy.ndarray' objects}
   427578    0.685    0.000    3.358    0.000 fromnumeric.py:51(_wrapfunc)
   387785    0.684    0.000    0.684    0.000 {method 'items' of 'dict' objects}

Complete file is below:

We can also make an image from data:

Install gprof2dot : pip install gprof2dot
run : python -m gprof2dot -f pstats test.prof | dot -Tsvg -o output.svg

Example image looks like this ( output.svg is simplified image, output1.svg is complete image with full data):

Line-profiler analysis

To read data from jintrac_imas_driver.py.lprof run:

python -m line_profiler jintrac_imas_driver.py.lprof .

These are the first few lines of the results :

line-profiler result

Timer unit: 1e-06 s

Total time: 232.892 s
File: /pfs/work/g2pbloch/python/jintrac_imas_driver.py
Function: jintrac_imas_driver at line 721

Line #      Hits         Time  Per Hit   % Time  Line Contents
==============================================================
   721                                           @profile
   722                                           def jintrac_imas_driver(params, components, mpi='no'):
   723
   724                                               """JINTRAC-IMAS generic workflow driver."""
   725
   726                                               # Workflow configuration parameters
   727
   728         1          5.9      5.9      0.0      user_in = wf.string(params, "Input IDS user")
   729         1          2.3      2.3      0.0      machine_in = wf.string(params, "Input IDS machine")
   730         1          4.7      4.7      0.0      shot_in = wf.integer(params, "Input IDS shot")
   731         1          2.1      2.1      0.0      run_in = wf.integer(params, "Input IDS run")
   732         1          2.9      2.9      0.0      user_out = wf.string(params, "Output IDS user")
   733         1          2.6      2.6      0.0      machine_out = wf.string(params, "Output IDS machine")
   734         1          2.6      2.6      0.0      shot_out = wf.integer(params, "Output IDS shot")
   735         1          2.6      2.6      0.0      run_out = wf.integer(params, "Output IDS run")
   736         1         13.3     13.3      0.0      user_tmp = os.environ['HOME']+'/public/tempdb'

Complete file is below:

Key lines from the results:

Key lines from line-profiler

Line #      Hits         Time  Per Hit   % Time  Line Contents
   895         1   62545203.7 62545203.7     26.9      alenv = ALEnv(user_temp=user_tmp)
   917        22   49496025.7 2249819.4     21.3                  ids_bundle_input[ids_struct] = eval('DBentry.idsin.get("'+ids_struct+'")')
   922         1   83745046.9 83745046.9     36.0      tmpdict = bundle_copy(ids_bundle_input)
   956         2    4665617.1 2332808.6      2.0                          ids_bundle_input[elem] = DBentry.idsin.get_slice(elem, tstart, 3)
   966         1    6353190.5 6353190.5      2.7      ids_bundle_work = bundle_copy(ids_bundle_input)
   967         1    7884627.8 7884627.8      3.4      ids_bundle_updated = bundle_copy(ids_bundle_input)
  1022         3   14539266.0 4846422.0      6.2          ids_bundle_prev[item] = bundle_copy(ids_bundle_work,imas_control.get_ids_sublist_updates(item))

Candidates for bottlenecks

From cProfile result can see that 85% execution time jintrac_imas_driver.py spend on imas functions. Function ual_open_pulse was called only 3 times. It execution time is 27s. Functions ual_read_data_array and ual_read_data_scalar was called more than 2 milions times.

From line-profiler we can see, that jintrac_imas_driver.py spends a lot of time in lins with functioin bundle_copy. This function call imas functions. A lot of time is also taken up by functions calls with DBentry.

Possible ways to speed up jintrac_imas_driver.py:

Reducing number of calls: ual_open_pulse, ual_read_data_array, ual_read_data_scalar

Summary of July Profiling (HFD5)

Instruction

JINTRAC version to use with HDF5 (latest AL) on GW

module use /pfs/work/g2fjc/jintrac/v120523/modules
module load jintrac
export JINTRAC_IMAS_BACKEND=HDF5
module use /pfs/g2fjc/cmg/jams/v230123/modules
module load jams
(Create test case data)
idscp -u g2pmanas --database west -si 54762 -so 54762 -ri 123 -ro 123 -bo HDF5
(path)
/pfs/work/g2fjc/jetto/runs/runmemleak_v120523_np1_z0_1ms

Line Profiler

Key lines from the results:

Key lines from the results

Timer unit: 1e-06 s
Total time: 155.404 s
File: /pfs/work/g2pbloch/jintrac/python/jintrac_imas_driver.py
Function: jintrac_imas_driver at line 735

Line #      Hits         Time  Per Hit   % Time  Line Contents
==============================================================
   957        22   44253622.5 2011528.3     28.5           ids_bundle_input[ids_struct] = eval('DBentry.idsin.get("'+ids_struct+'")')
   962         1   46906374.5 46906374.5     30.2          tmpdict = bundle_copy(ids_bundle_input)
   996         2    5116586.7 2558293.3      3.3           ids_bundle_input[elem] = DBentry.idsin.get_slice(elem, tstart, interp_value)
  1011         1    3447098.9 3447098.9      2.2           ids_bundle_work = bundle_copy(ids_bundle_input)
  1012         1    4400338.9 4400338.9      2.8           ids_bundle_updated = bundle_copy(ids_bundle_input)
  1067         3    6886544.4 2295514.8      4.4           ids_bundle_prev[item] = bundle_copy(ids_bundle_work,imas_control.get_ids_sublist_updates(item))
  1099         3   29669430.5 9889810.2     19.1           ids_bundle_updated_tmp = eval(imas_control.get_wrapper(item) + args)
  1105        11    4863627.8 442148.0      3.1            ids_bundle_updated[ids_struct].copyValues(ids_bundle_updated_tmp[ids_struct])
  1106        11    3643527.1 331229.7      2.3            ids_bundle_prev[item][ids_struct].copyValues(ids_bundle_updated_tmp[ids_struct])
  1114         1    4798639.4 4798639.4      3.1           ids_bundle_work = bundle_copy(ids_bundle_updated)


Total time: 12.4112 s
File: /pfs/work/g2pbloch/jintrac/python/jintrac_imas_driver.py
Function: jetto_wrapper at line 304
Line #      Hits         Time  Per Hit   % Time  Line Contents
==============================================================
   323         1          0.7      0.7      0.0      out_prof, out_src, out_trans, out_equil, out_summ, out_num, out_work \
   324         1    8768238.1 8768238.1     70.6                = jetto(in_prof, in_src, in_trans, in_equil, in_nbi,
   325         1          0.3      0.3      0.0                        in_pel, in_pulse, in_contr, in_summ, in_num, in_work)
   367         1    3589306.4 3589306.4     28.9      out_ids_bundle = bundle_copy(in_ids_bundle_work)

Complete file is below:

cProfiler

Key lines from the results

Wed Jul  5 09:31:02 2023    jintrac.prof

         207387232 function calls (178651380 primitive calls) in 151.148 seconds

   Ordered by: internal time

   ncalls  tottime  percall  cumtime  percall filename:lineno(function)
26076870/927   40.102    0.000   82.859    0.089 copy.py:128(deepcopy)
  3356451   24.272    0.000   36.639    0.000 {imas_3_38_1_ual_4_11_4._ual_lowlevel.ual_read_data_array}
778014/927    9.056    0.000   82.841    0.089 copy.py:227(_deepcopy_dict)
 53709341    7.111    0.000    7.111    0.000 {method 'get' of 'dict' objects}
        1    5.916    5.916    7.367    7.367 wrapper.py:48(jetto_actor)
  2959395    4.441    0.000    4.441    0.000 {imas_3_38_1_ual_4_11_4._ual_lowlevel.ual_read_data_scalar}
  4441187    4.234    0.000    4.234    0.000 {method '__deepcopy__' of 'numpy.ndarray' objects}
1556028/927    4.081    0.000   82.851    0.089 copy.py:259(_reconstruct)
  7099231    3.948    0.000    5.721    0.000 copy.py:243(_keep_alive)
 35834998    3.774    0.000    3.774    0.000 {built-in method builtins.id}
  3398693    3.110    0.000    3.110    0.000 {built-in method numpy.zeros}
  1005851    3.045    0.000    3.045    0.000 {method 'reduce' of 'numpy.ufunc' objects}
 18974180    2.106    0.000    2.106    0.000 copy.py:182(_deepcopy_atomic)
  1556028    1.918    0.000    1.921    0.000 {method '__reduce_ex__' of 'object' objects}
  8578377    1.660    0.000    1.660    0.000 {built-in method builtins.getattr}
   134159    1.607    0.000    1.607    0.000 {imas_3_38_1_ual_4_11_4._ual_lowlevel.ual_begin_arraystruct_action}
   509900    1.504    0.000    3.231    0.000 fromnumeric.py:38(_wrapit)
  1005853    1.383    0.000   10.248    0.000 {built-in method numpy.core._multiarray_umath.implement_array_function}
        1    1.212    1.212  151.202  151.202 jintrac_imas_driver.py:1(<module>)
  1274146    1.140    0.000    1.140    0.000 {method 'items' of 'dict' objects}
   495951    1.116    0.000    3.696    0.000 fromnumeric.py:69(_wrapreduction)
   509900    1.051    0.000    1.051    0.000 {method 'reshape' of 'numpy.ndarray' objects}

Complete file is below:

Possible bottlenecks

Process of copying data ( bundle_copy , copyValues ).
eval(imas_control.get_wrapper(item) + args) and eval(imas_control.get_wrapper(item) + args) take almost half of function time

Testing HDF5

HDF5_BACKEND_READ_CACHE - TABLE

HDF5_BACKEND_READ_CACHE [MB]	jintrac_imas_driver	jetto_wrapper	jintrac_imas_driver	jetto_wrapper
getslice interpolation	off	off	on	on
4	241.739	12.9481	230.008	12.136
8	234.774	12.3213	228.837	12.1292
12	168.333	13.0729	148.889	12.0893
16	154.656	12.3905	152.87	12.3117
20	152.988	12.4138	155.945	12.4595
24	150.913	12.283	155.469	12.7765
28	153.991	12.5123	153.11	12.3468
32	153.903	12.4356	149.575	12.1548
36	159.225	12.6422	151.492	12.1888
40	149.549	12.2838	152.926	12.207
44	158.385	12.5754	154.827	12.266
48	153.306	12.3843	152.786	12.3101
52	150.771	12.3464	151.305	12.1539
56	165.846	13.0865	153.383	12.2905
60	153.729	12.6542	155.563	12.4427
64	161.231	12.5552	151.229	12.2685
68	154.142	12.4402	148.697	12.0926
72	153.52	12.4294	149.757	12.1072
76	149.982	12.3277	151.765	12.2017
80	155.473	12.6245	151.903	12.2647
84	150.118	12.2872	152.894	12.2489
88	149.918	12.2017	154.456	12.285
92	151.403	12.317	149.207	12.0798
96	150.825	12.3905	152.792	12.2197
100	149.834	12.6997	147.859	12.0551
104	150.326	12.3421	148.031	12.062
108	151.51	12.3496	152.049	12.2785
112	155.506	12.4702	154.526	12.3407
116	153.662	12.4152	153.498	12.2769
120	158.311	12.7339	148.607	12.1153
124	154.864	12.2361	156.592	12.5044
128	153.5	12.2201	154.231	13.1112
132	152.191	12.3723	156.739	12.4632
136	160.911	12.5815	152.368	12.3718
140	159.165	12.8561	149.531	12.1498
144	153.646	12.4145	151.239	12.1133
148	149.434	12.3417	147.887	11.9921
152	151.505	12.3484	151.848	12.4215
156	151.068	12.3288	156.421	12.4458
160	152.951	12.4558	155.213	12.4617
164	149.566	12.2848	151.589	12.2744
168	151.872	12.4422	151.654	12.4456
172	152.766	12.4294	153.34	12.2264
176	151.982	12.4162	149.911	12.254
180	152.768	12.4248	156.015	12.3302
184	148.166	12.2076	149.323	12.2971
188	153.493	12.4229	153.415	13.0557
192	153.968	12.3694	157.029	12.4348
196	152.465	12.3764	154.288	12.2881
200	149.238	12.2266	154.713	12.3013

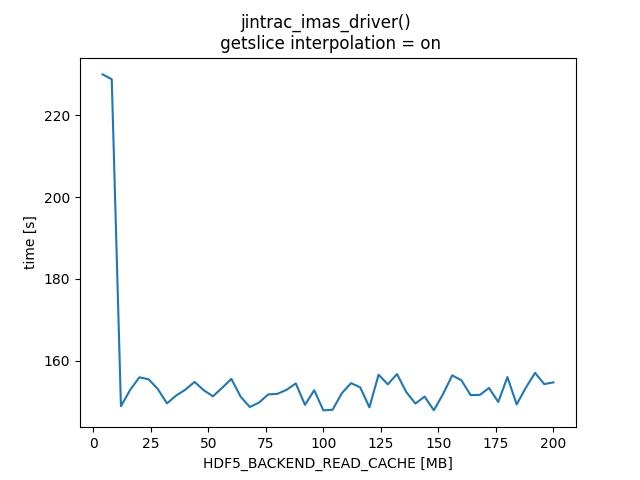

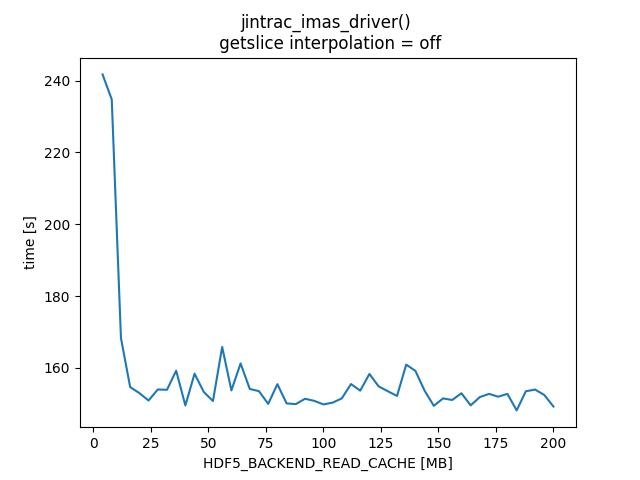

HDF5_BACKEND_READ_CACHE - PLOTS

TESTING MDSPLUS

LINE PROFILER

Line profiler

Timer unit: 1e-06 s

Total time: 155.743 s
File: /pfs/work/g2pbloch/jintrac/python/jintrac_imas_driver.py
Function: jintrac_imas_driver at line 735

Line #      Hits         Time  Per Hit   % Time  Line Contents
==============================================================
   896         1    1638364.1 1638364.1      1.1                  status, idx_out = DBentry.idsout.create()  # idx_out points to output IDS file index
   957        22   50742304.5 2306468.4     32.6                      ids_bundle_input[ids_struct] = eval('DBentry.idsin.get("'+ids_struct+'")')
   962         1   45878227.2 45878227.2     29.5          tmpdict = bundle_copy(ids_bundle_input)
   996         2    3193050.2 1596525.1      2.1                              ids_bundle_input[elem] = DBentry.idsin.get_slice(elem, tstart, interp_value)
  1011         1    3399663.8 3399663.8      2.2      ids_bundle_work = bundle_copy(ids_bundle_input)
  1012         1    4340984.3 4340984.3      2.8      ids_bundle_updated = bundle_copy(ids_bundle_input)
  1067         3    6779104.9 2259701.6      4.4          ids_bundle_prev[item] = bundle_copy(ids_bundle_work,imas_control.get_ids_sublist_updates(item))
  1199         3   25454536.5 8484845.5     16.3                  ids_bundle_updated_tmp = eval(imas_control.get_wrapper(item) + args)
  1105        11    4817487.6 437953.4      3.1                              ids_bundle_updated[ids_struct].copyValues(ids_bundle_updated_tmp[ids_struct])
  1106        11    3587909.3 326173.6      2.3                              ids_bundle_prev[item][ids_struct].copyValues(ids_bundle_updated_tmp[ids_struct])
  1114         1    4769085.3 4769085.3      3.1          ids_bundle_work = bundle_copy(ids_bundle_updated)

Total time: 12.4592 s
File: /pfs/work/g2pbloch/jintrac/python/jintrac_imas_driver.py
Function: jetto_wrapper at line 304

Line #      Hits         Time  Per Hit   % Time  Line Contents
==============================================================
   323         1          1.3      1.3      0.0      out_prof, out_src, out_trans, out_equil, out_summ, out_num, out_work \
   324         1    8958798.8 8958798.8     71.9                = jetto(in_prof, in_src, in_trans, in_equil, in_nbi,
   325         1          0.2      0.2      0.0                        in_pel, in_pulse, in_contr, in_summ, in_num, in_work)
   367         1    3459717.4 3459717.4     27.8      out_ids_bundle = bundle_copy(in_ids_bundle_work)

Complete file is below:

CPROFILER

Cprofiler

Thu Jul 20 14:45:51 2023    jintrac.prof

         207169007 function calls (178433155 primitive calls) in 153.082 seconds

   Ordered by: internal time

   ncalls  tottime  percall  cumtime  percall filename:lineno(function)
26076870/927   40.886    0.000   83.306    0.090 copy.py:128(deepcopy)
  3356451   22.884    0.000   35.138    0.000 {imas_3_38_1_ual_4_11_3._ual_lowlevel.ual_read_data_array}
778014/927    8.909    0.000   83.288    0.090 copy.py:227(_deepcopy_dict)
  2959395    8.181    0.000    8.181    0.000 {imas_3_38_1_ual_4_11_3._ual_lowlevel.ual_read_data_scalar}
 53709341    6.903    0.000    6.903    0.000 {method 'get' of 'dict' objects}
        1    5.946    5.946    7.387    7.387 wrapper.py:48(jetto_actor)
  4441187    4.289    0.000    4.289    0.000 {method '__deepcopy__' of 'numpy.ndarray' objects}
1556028/927    4.099    0.000   83.298    0.090 copy.py:259(_reconstruct)
  7099231    3.986    0.000    5.677    0.000 copy.py:243(_keep_alive)
 35834998    3.833    0.000    3.833    0.000 {built-in method builtins.id}
  3398693    2.945    0.000    2.945    0.000 {built-in method numpy.zeros}
   987875    2.815    0.000    2.815    0.000 {method 'reduce' of 'numpy.ufunc' objects}
 18974180    2.163    0.000    2.163    0.000 copy.py:182(_deepcopy_atomic)
  1556028    1.704    0.000    1.707    0.000 {method '__reduce_ex__' of 'object' objects}
  8542427    1.672    0.000    1.672    0.000 {built-in method builtins.getattr}
   495951    1.465    0.000    4.334    0.000 fromnumeric.py:69(_wrapreduction)
  1274146    1.441    0.000    1.441    0.000 {method 'items' of 'dict' objects}
   491924    1.422    0.000    3.040    0.000 fromnumeric.py:38(_wrapit)
        1    1.277    1.277  153.141  153.141 jintrac_imas_driver.py:1(<module>)
   987877    1.196    0.000   10.454    0.000 {built-in method numpy.core._multiarray_umath.implement_array_function}
   491924    1.001    0.000    1.001    0.000 {method 'reshape' of 'numpy.ndarray' objects}

Complete file is below:

Partial_get vs get

IDS :: Core_profiles

The test is checking the time differences between fetching whole IDS using get and fetching IDS in parts using partial_get .

source code of patial_get vs get test

import sys
import numpy
import os
import time
import imas

user = os.environ['USER']
imasVersion = os.environ['IMAS_VERSION'][:1]
database = 'test'
backendtype = 'HDF5'
machine_in = "west"

ids_in = imas.DBEntry(13, "west", 54762, 1, user_name="/pfs/work/g2pbloch/jetto/runs/test/imasdb")
ids_in.open()

start_partial = time.time()
rho_tor_norm = ids_in.partial_get("core_profiles" ,"profiles_1d(:)/grid/rho_tor_norm(:)")
core_profiles_profiles_1d_zeff = ids_in.partial_get("core_profiles", "profiles_1d(:)/zeff(:)")
rho_tor_norm = ids_in.partial_get("core_profiles" ,"profiles_1d(:)/grid/rho_tor_norm(:)")
q = ids_in.partial_get("core_profiles" ,"profiles_1d(:)/q(:)")
density_thermal = ids_in.partial_get("core_profiles" ,"profiles_1d(:)/electrons.density_thermal(:)")
temperature = ids_in.partial_get("core_profiles" ,"profiles_1d(:)/electrons/temperature(:)")
ion = ids_in.partial_get("core_profiles" ,"profiles_1d(:)/ion")
t_i_average = ids_in.partial_get("core_profiles" ,"profiles_1d(:)/t_i_average(:)")
zeff = ids_in.partial_get("core_profiles" ,"profiles_1d(:)/zeff(:)")
rotation_frequency_tor_sonic = ids_in.partial_get("core_profiles", "profiles_1d(:)/rotation_frequency_tor_sonic")
end_partial = time.time()

start_get = time.time()
core_profiles = ids_in.get("core_profiles")
end_get = time.time()

print(f"partial_get: {end_partial - start_partial}, get : { end_get - start_get}")
ids_in.close()

The time gain is small, just below 1 second, for the entire duration of about 24 seconds:

partial_get: 23.91968011856079, get : 24.872377157211304

IDS :: equilibrium

Time result

partial_get without profiles_2d : 4.72s
partial_get with profiles_2d : 9.682
get : 7.47s

The scientific work is published for the realization of the international project co-financed by Polish Ministry of Science and Higher Education in 2019 from financial resources of the program entitled "PMW"; Agreement No. 5040/H2020/Euratom/2019/2
This work has been carried out within the framework of the EUROfusion Consortium and has received funding from the Euratom research and training programme 2014–2020 under grant agreement No 633053. The views and opinions expressed herein do not necessarily reflect those of the European Commission or ITER

Space shortcuts

Page tree

Table of Contents

Profilers

Requirements

How to run?

cProfile analysis

Line-profiler analysis

Candidates for bottlenecks

Summary of July Profiling (HFD5)

Instruction

Line Profiler

cProfiler

Possible bottlenecks

Testing HDF5

HDF5_BACKEND_READ_CACHE - TABLE

HDF5_BACKEND_READ_CACHE - PLOTS

TESTING MDSPLUS

LINE PROFILER

CPROFILER

Partial_get vs get

IDS :: Core_profiles

IDS :: equilibrium

Time result

Space shortcuts

Page tree

Python profiling

Table of Contents

Profilers

Requirements

How to run?

cProfile analysis

Line-profiler analysis

Candidates for bottlenecks

Summary of July Profiling (HFD5)

Instruction

Line Profiler

cProfiler

Possible bottlenecks

Testing HDF5

HDF5_BACKEND_READ_CACHE - TABLE

HDF5_BACKEND_READ_CACHE - PLOTS

TESTING MDSPLUS

LINE PROFILER

CPROFILER

Partial_get vs get

IDS :: Core_profiles

IDS :: equilibrium

Time result
